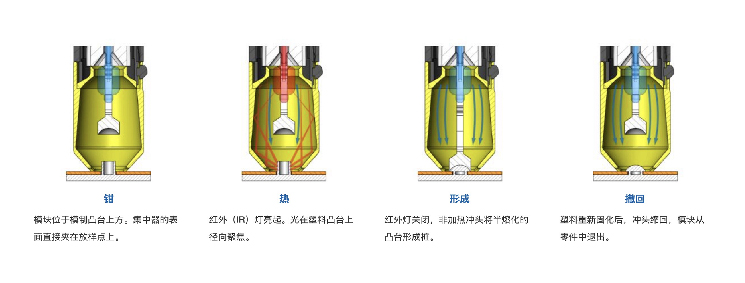

The overall structure consists of a converging light cover/pre pressing cap, infrared heating, and an integrated patented design with a built-in cylinder punch for hot riveting and welding. The entire process involves pre pressing and welding the parts to ensure seamless hot riveting assembly. The entire hot riveting process is completed at one pace, saving time, speed, efficiency, energy, safety, and reliability.
Each riveting and welding head assembly fixture base is designed with an independent elastic suspension structure, which can automatically correct the height deviation of the injection molded rivet column, maintain uniform force on each rivet cap head, and rivet without gaps at each welding point/with consistent appearance and size; Each riveting point can individually control process parameters; Simultaneously achieving multiple forms of riveted hat heads and simultaneous hot riveting assembly at multiple points on different horizontal surfaces; And support process monitoring; The hot riveting results of each component can be fully recorded, archived, tracked, and traceable.
Non contact infrared focused heating riveting pile, compressed air pulse rapid cooling formed riveting head.
The integrated patented design of pneumatic pre pressing, heating, and riveting ensures seamless hot riveting assembly throughout the entire process of pre pressing, completing the entire hot riveting process in one action, fast and efficient.
The hot riveted hat head should have no debris, missing corners, or sticking or hanging wires, and all rivet heads should have the same shape, uniform consistency, and no internal stress.
The surface of the riveted parts around the hot rivet cap is flat and free of thermal deformation, and there is no heat affected area.
Each riveting point is designed as an independent elastic structure, which can achieve simultaneous riveting assembly of multiple points on different planes
Working at a low voltage of 12V, with no high-temperature hazardous components, and no moving parts on the tabletop, there is no need to protect the outer frame of the safety light curtain. The structure is compact and the volume is small.
The hot riveting assembly process is vibration free, pollution-free, and noise free, environmentally friendly and energy-saving.
● It can start up and run without the need for preheating and waiting time
Short welding cycle, welding
